A vapor barrier is a polyethylene sheeting system installed on the ground and walls of a crawl space or basement to block ground moisture from migrating into the structural environment above. A correctly installed vapor barrier in Oxford requires the right material specification, proper seam treatment, wall coverage, and mechanical fastening to provide lasting protection against moisture migration.
A mil is one-thousandth of an inch, and the difference between a 6-mil sheet and a 20-mil sheet is significant in terms of puncture resistance, lifespan, and moisture vapor transmission rate. For most homes in Oxford, OH, we recommend a minimum 10-mil product for general installation and a 20-mil product for spaces with high moisture loads or frequent access requirements.
Seam treatment is equally important to the material specification when it comes to achieving a functioning vapor barrier system. Seam quality is one of the most overlooked and most impactful aspects of the vapor barrier installation.
Covering only the floor and stopping the barrier at the wall-floor junction leaves the porous block or concrete foundation walls as an open pathway for moisture to enter the crawl space environment. The combination of floor coverage, properly lapped and taped seams, and full wall coverage to the sill plate creates a complete moisture envelope that dramatically reduces crawl space humidity and protects the wood framing above.
HVAC equipment and ductwork located in a humid crawl space corrodes faster, loses efficiency, and requires earlier replacement than equipment in a properly sealed environment. If the barrier is incomplete or poorly sealed, a dehumidifier simply works harder against an unlimited moisture supply, running continuously and consuming excessive energy without achieving target humidity levels.
Our installers are trained on manufacturer specifications for every product we use.
The materials we install in Oxford are built to last decades, not years.
We extend the barrier up every wall to the sill plate, closing the moisture entry pathway that floor-only installations miss.
You receive documentation of your warranty before we leave the property.
The result is a continuous moisture envelope that protects your floor framing from ground vapor for years to come.
We remove deteriorated existing barriers, prepare the substrate, and install a properly spec'd replacement that meets current installation standards.
We install vapor barrier systems under flooring or as a standalone moisture management layer in unfinished basements.

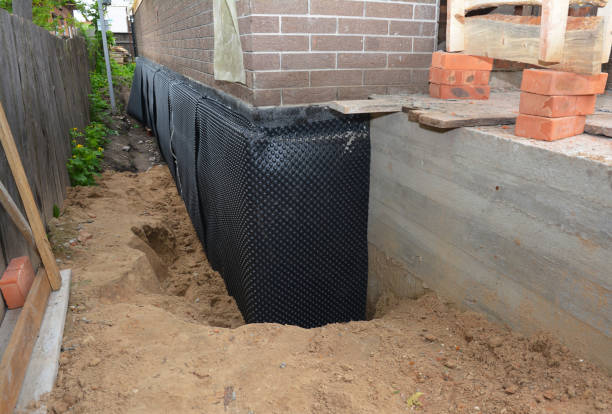

In basements with both vapor migration and liquid water management needs, we integrate dimple mat drainage board beneath the vapor barrier to channel any liquid water to a perimeter drain system.
Adding a properly sized dehumidifier completes the moisture management system and ensures consistent relative humidity control regardless of outdoor conditions.
We offer post-installation inspections for vapor barriers installed by other contractors, as well as for our own older installations, to assess barrier condition, seam integrity, and wall coverage completeness.
We measure the space, assess existing moisture conditions, document any existing barrier or mold, and identify all penetrations that will need to be addressed in the installation
Based on site conditions, we specify the appropriate mil rating, calculate material quantities, and plan the seaming layout for maximum coverage and minimum waste
Sheeting is laid, overlapped at 12 inches minimum, taped with butyl tape at all seams, and extended up all walls with mechanical fastening at the top edge
We walk through the completed installation with you, confirm all seams and coverages are complete, and provide written warranty documentation before leaving
"We had a previous vapor barrier installation that was barely 6-mil and had separated seams throughout. The humidity in our crawl space was unacceptable and we were starting to see mold on the floor joists. JCB Waterproofing and Construction removed the old liner and installed a commercial-grade system with butyl tape seams throughout. The difference in our indoor air quality was noticeable within a week."
"Very professional team that explained the difference between the grades of vapor barrier sheeting before recommending anything. The 20-mil they installed is rock solid and the seams are all properly taped. We can already see the humidity meter reading dropping consistently."
"The crew extended the barrier all the way up the walls to the sill plate, which the contractor who did our original installation did not do. The proper wall-to-sill installation finally completed our moisture protection. Great work from a team that clearly knows what they are doing."
Our certified team is ready to assess your crawl space and provide a clear, honest recommendation
